Disposable Lancet

Design Description


​Device Description

Medical Device

Class

​Puzzle/toy

About

This disposable Lancet use the sterile point to gently loosen the skin above and around the splinter, fold in half and use splinter pull out as forceps to grip the splinter and pull out. Surface skin has few nerve endings and can be gently picked away, exposing the splinter with minimal discomfort. Full instructions appear on the back of each card and individual wrapper.

Summary

This device was designed for the purposes of removing splinters. The device has three outstanding features: Firstly, sterile, which was made with the aim of achieving clean removals without wound infection. Secondly, Sharp Tri-bevel point, for loosening and pulling out splinters. Third, Kerf, which will allow the tool to folded for tri-bevel points to grip. We ask for your continued support and cooperation.

Design Consideration​


General:

This document reflects the needs and requirements The consultant must use this document as the basis of the splinter remover design in the design of the device.

Environmental Requirements

  • Location: Indoors & Outdoors
  • Elevation: Varies
  • Temperature: Varies
  • Sound level: Varies
  • Light Level: Well lit

Cost target

  • Cost of purchase

Aesthetics: ​

  • Style
  • Color
  • Texture
  • Fit and finish
  • Appeal to both men and female

Geometry

  • Size
  • overall dimensions
  • Curvature

Physical characteristics

  • Weight
  • Comfortable
  • Density
  • Surface texture
  • Hardness
  • Corrosive resistant
  • Finish

Performance characteristics

  • Accuracy
  • Strength
  • Reproducibility, repeatability (Does it always do the same thing given the same input?)

​Built in flaws from processing

  • Uneven metal formation
  • Scrap metal
  • Tolerance not upheld
  • Surface contamination
  • Chemical impurities
  • Handling or static damage

Transportation considerations

  • Physical damage to parts

Manufacturing considerations

  • Difficulty of making
  • Equipment or manufacturing techniques required to build the invention
  • Number of component parts
  • Labor requirements
  • Means of shipping or delivery

Installation/set-up errors

  • Factory errors
  • Customer errors

User wants:

  • Non Choking hazard
  • ​Strong

User requirements

  • Ease of use
  • Ease of cleaning
  • Incorporates tactile, or visual user feedback (correct positioning)

Regulatory & licensing considerations

  • Must consider no choke tube
  • Must use FDA safe Materials to produce product
​​
Site:

  1. Location: Home, office, Workshop, First-Aid Kit, Tool Box, and more
  2. Light Level: Well lit

Cost target:

  • Cost of purchase
  • Cost of use


Transportation considerations:

  • Physical damage to parts

Manufacturing considerations:

  • Difficulty of making
  • Equipment or manufacturing techniques required to build the invention
  • Number of component parts
  • Labor requirements
  • Means of shipping or delivery

Installation/set-up errors:

  • Factory errors
  • Customer errors

User wants:
  • Sterile
  • Ease of use

User requirements:

  • Ease of use
  • Ease of learning
  • Sterile

Regulatory & licensing considerations:

  • Meets government rules

Engineering


After considering the normal usage of the design.
​

The ‘Weird’ loads it might be subject to are the following: ​

Fatigue

Fatigue is found in rings and base when being played with

Impact

Impact is found in the product when its dropped or banged against something

​Tension

Tension is found in the rings when the user tries pulling it apart.

Flexure

Flexure is found in between the base and tip while force is applied on its side

​Compression

Compression is found in the ring when stepped on or being bit.

Summary

The stresses that we considered to be the most problematic are the following:

​Stress concentration:
Stress concentration is found when user is biting on ring. Also is found at base tip when leaning over on side or dropped.

Ergonomics

A study was conducted to determine device size, needs to fit the average male and female. Here is the data.

The minimal measurement from fingertip to apply 16 LB max force finger is .5, this would be the minimal dimensions that the device should close to.

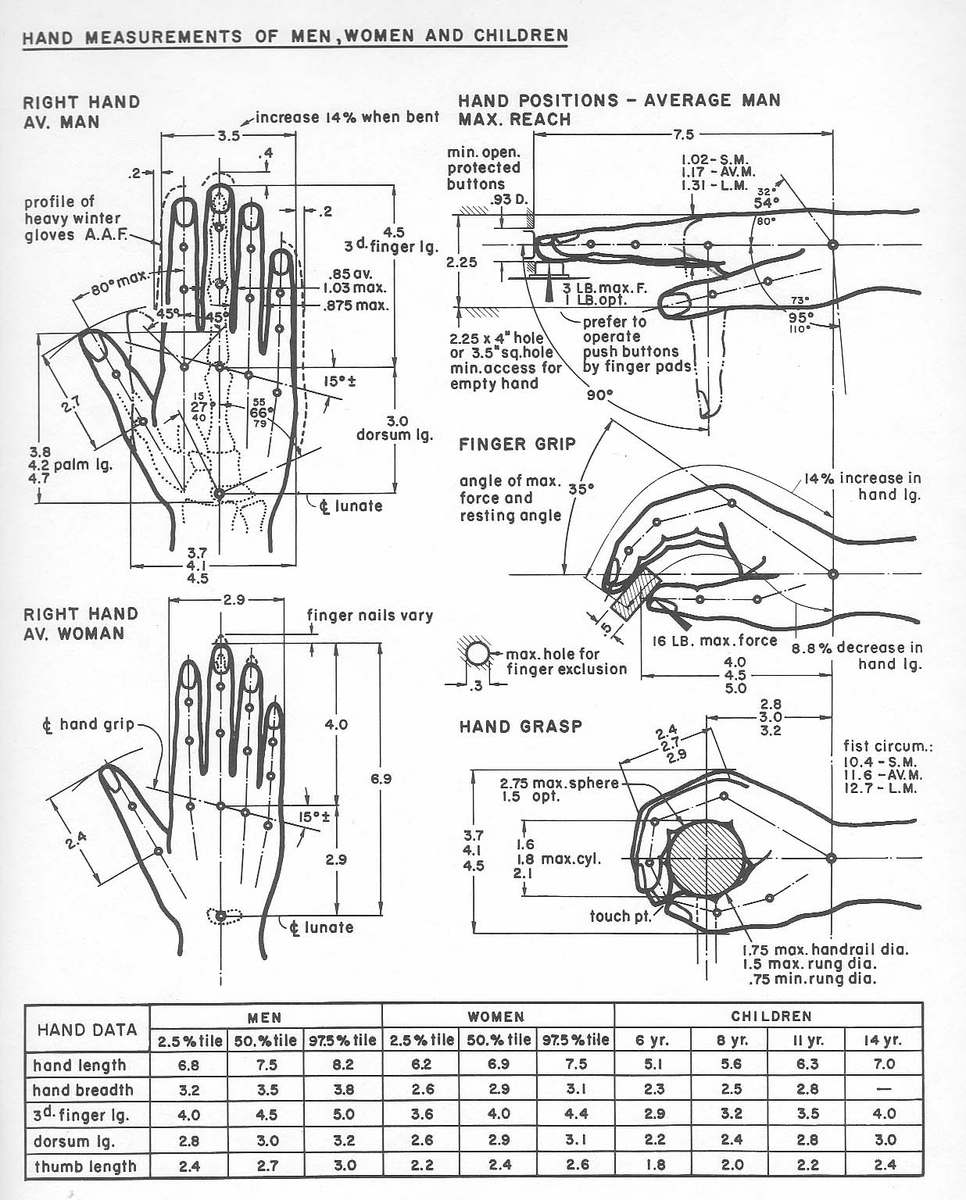

This image is of the official hand measurement of men, women and children

Features & Benefits

Tower

Shape
  • Identifying and organizing visual information
  • Provides registration and fixture location
  • Makes device asymmetrical
  • Connection between familiar objects
  • Basic educational skill
  • Wobbly base Encourages hand-eye coordination

Color
  • Makes distinctions among things
  • Learn colors by matching shapes
  • Match with rings
  • Encourage creative thinking and language
  • Texture
  • Helps engage child’s natural curiosity
​
  • Device
    • Tri-beveled blade
      • minimum pain
    • Knurls
      • Prevent slipping
    • Length
      • Easy handling
      • Controlled penetration
    • Fulcrum
      • Precise fold
  • Device Case
    • Snap shut
      • Seals shut
  • Wrapping
    • Individually wrapped
      • Sterility

Rings

Shape
  • Identifying and organizing visual information
  • Provides registration and fixture location
  • Makes device asymmetrical
  • Connection between familiar objects
  • Basic educational skill

Color
  • Makes distinctions among things
  • Learn colors by matching shapes
  • Match with shaft
  • Encourage creative thinking and language

Texture
  • Helps engage child’s natural curiosity
  • Rounded bottom
  • Wobbly base Encourages hand-eye coordination
  • Sound
  • Makes sound

User Personas


Bryant

Scenario:
It’s Thursday afternoon and Bryant is sanding some wood before Appling lacquer to the frame of the bed. He gets a splinter and needs to remove it before it heals over and becomes infected. So he gets out his pack of splinter removal devices and picks at it and it keeps slipping out from the lancet tri beveled point he begins to feel challenged. He wants to use forceps to pull out the slinter so he can get to go to work.

​User Persona:
Bobby is a 21-year-old college graduate in Atlanta, GA where he studied early childhood education. He lives in an apartment with his recent engaged girlfriend. Tom was born in Brunswick, GA and was raised by two parents who still live in Brunswick. Tom has two younger sisters living at home, Tom enjoys hiking and watching movies. He spends a lot of time watching YouTube videos with his girlfriend when not studying. Tom does work in his dorm but he spends most of the time at his desk

Luke

Scenario:
It’s Tuesday morning and Zach is climbing on a ropes course. He slips off a log and tries grabbing it. His hand runs across the log and he gets a splinter. He wants to stop climbing to remove the slinter and to collect himself so he can be comfortable while finishing his climb.
​
​User Persona:
Monica is a 31-year-old married alumnus of Boston College in Boston, MA where she teaches Phycology lessons. She lives in an apartment complex with her husband. Monica was born in Dallas, TX and was raised by two parents who still live in Dallas. Monica has four younger brothers three living at home, Monica enjoys sewing and watching soap operas. She spends a lot of time watching Bob Ross videos with her husband when not playing with her son.

Manufacturing


​Material

Stainless Steel
  • Inexpensive
  • Impact resistant
  • Stain Resilient
  • Low combustibility
  • Flexible
  • Transparent/opaque
  • High or low modulus

Form and Cut

Stamping

Type

Progressive

When Designing Part

​⦁ Avoid sharp corners
⦁ Filleted edges

Surface finish

C1

Process

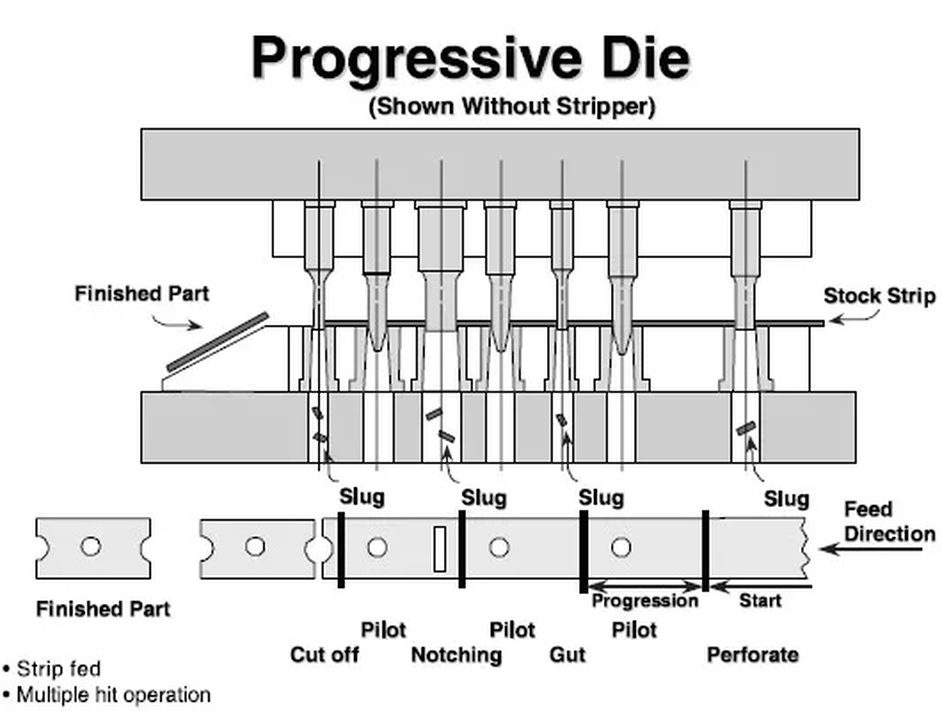

The feeding system pushes a strip of metal (as it unrolls from a coil) through all of the stations of a progressive stamping die. Each station performs one or more operations until a finished part is made. The final station is a cutoff operation, which separates the finished part from the carrying web.
